Nord Electro 7 61 - 230V

Technical Specifications

• Designed for live performance and studio use
• 61-note semi-weighted waterfall keyboard
• Three independent sections for piano, organ, and synth with Split and Layer functionality
• Six freely assignable split points with LED indicators
• Large colour display
• Program section with Live Mode, Set List function, and push encoder for fast program selection
• Seamless sound transitions thanks to the Seamless Transitions feature

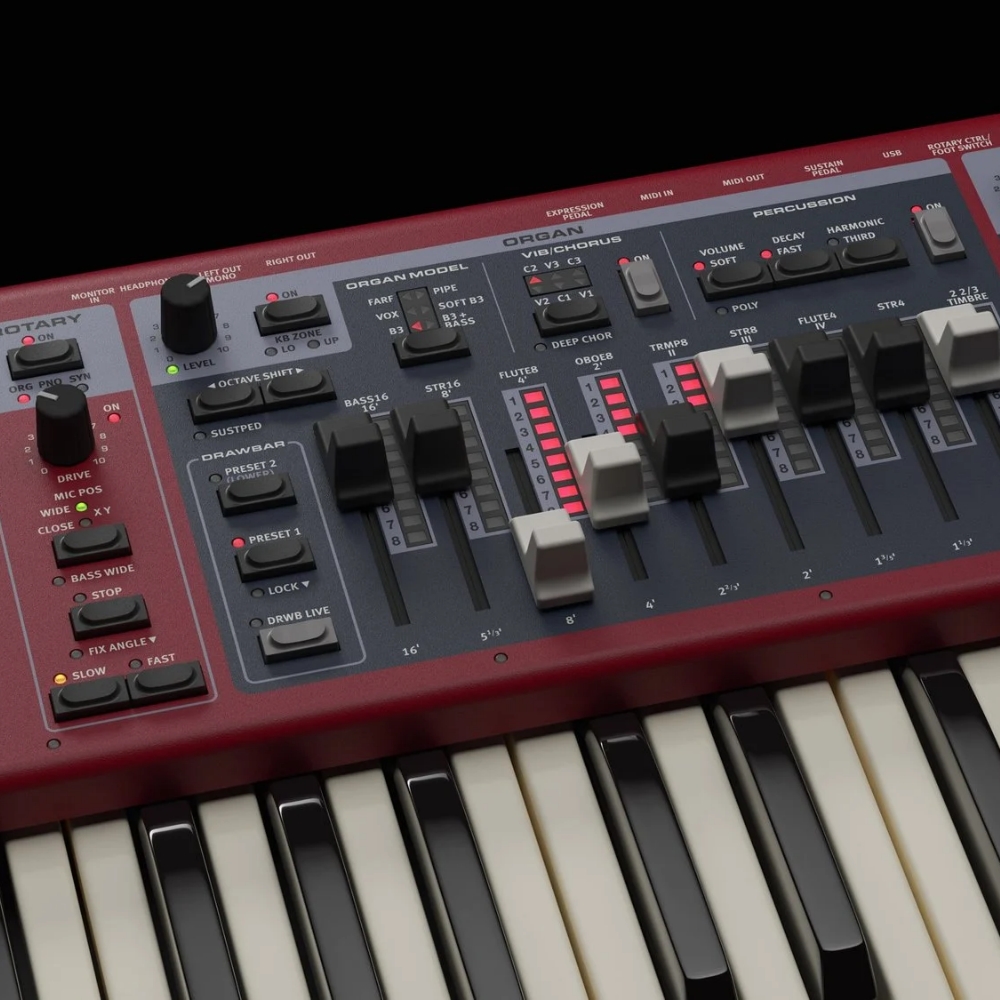

Organ Section

• Based on the Nord Organ 3 engine
• Includes B3, B3 Bass, Vox, Farfisa, Soft B3, and Pipe Organ models
• Rotary speaker simulation with selectable microphone positions and Slow/Fast/Stop modes
• Dual Organ mode for quick dual-manual setups
• Drawbar Live Mode and presets for upper and lower manuals
• Physical drawbars with LED indicators
• Compatible with the optional Nord Half-Moon Switch (Art. 117159, not included)

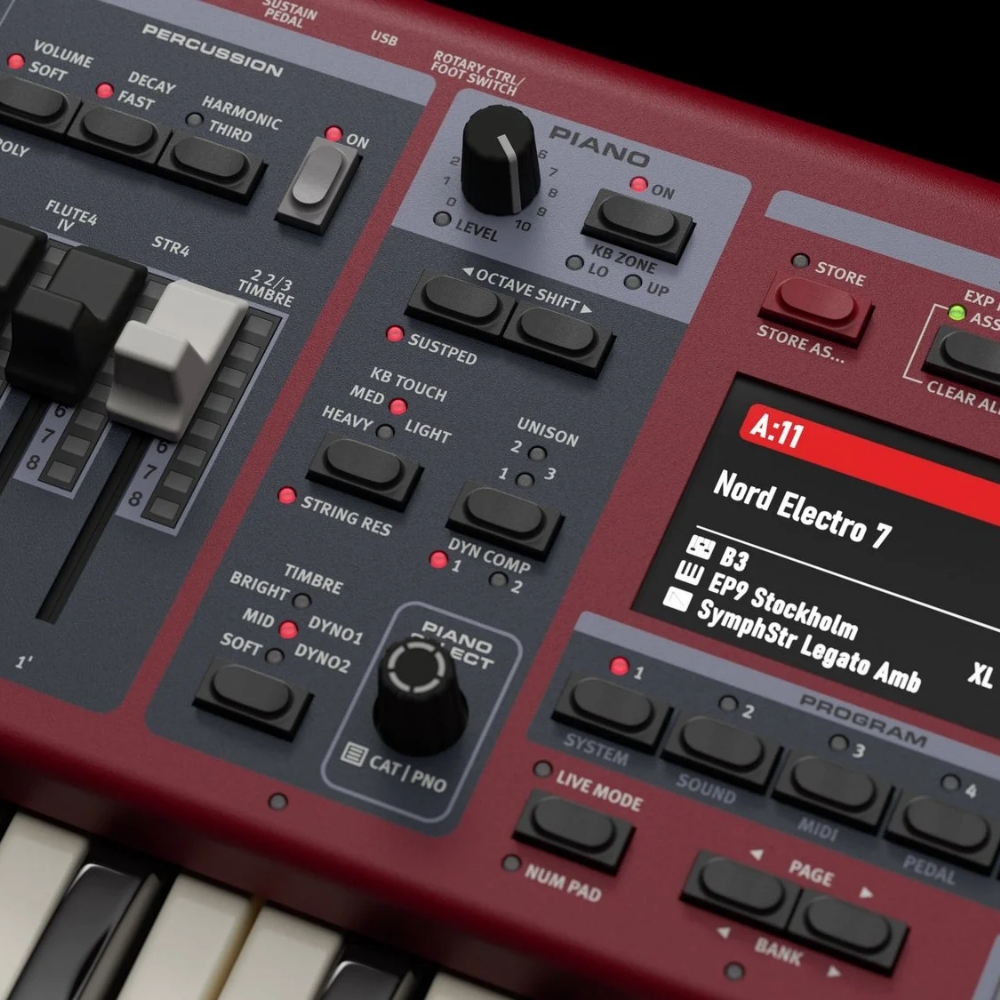

Piano Section

• Compatible with the Nord Piano Library
• Dynamic compression and Unison function
• Push encoder for sound and category selection

Synth Section

• Sample playback, classic waveforms, and FM synthesis
• Compatible with the Nord Sample Library
• Mono and Legato modes with Glide and Unison function
• ADR envelopes for amplifier and filter
• Resonant low-pass filter

Effects Section

• Dedicated effects for each section
• Two simultaneous modulation effects including tremolo, wah, ring modulator, chorus, flanger, phaser, ensemble, and more
• Delay with Tap Tempo, analogue simulation, switchable filter, and Ping-Pong mode
• Amplifier section with five amp models, Drive control, and 3-band EQ
• Compressor assignable per section or globally
• Global reverb with optional send per layer
• All effects operate in stereo

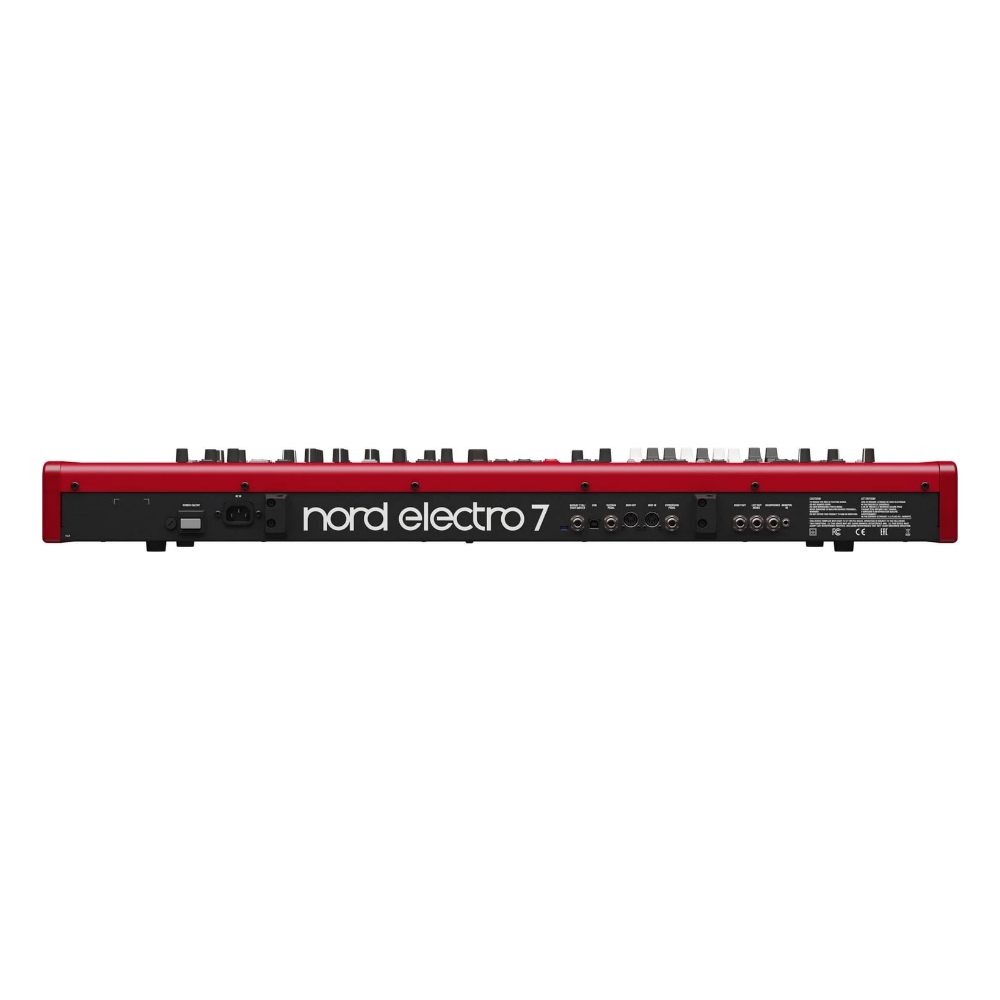

Connectivity

• Monitor input: 3.5 mm stereo mini jack
• Sustain pedal input: 6.3 mm jack
• Expression pedal input: 6.3 mm jack
• Rotary speaker / Half-Moon Switch input: 6.3 mm jack
• Stereo line outputs: 2 × 6.3 mm jack
• Stereo headphone output: 6.3 mm jack
• MIDI In/Out: 5-pin DIN
• USB-B port

Dimensions & Weight

• Dimensions (W × D × H): 901 × 307 × 104 mm
• Weight: 8.4 kg
